1. Introduction to Spatial Analytics¶

Learning goals for this lesson

After this week’s tutorial, you should be able to understand:

What is special about spatial?

What is the typical process workflow for doing spatial analysis?

Key definitions and their differences/similarities:

spatial analysis; GIS; geocomputation; GIScience; geographic data science; quantitative geography, ..

What are typical application areas for spatial analytics?

What kind of contemporary spatial data science challenges exist?

Resources

This week’s literature and video material that you can go though on your own time.

Literature:

de Smith, M. Goodchild, P. Longley (2020) - Geospatial Analysis (free online book):

Chapter 3.1 - Analytical methodologies

Chapter 3.2 - Spatial analysis as a process

Chapter 3.3 - Spatial analysis and the PPDAC model

Singleton, A. & D. Arribas-Bel (2019) - Geographic Data Science [2]

Wolf L.J. et al. (2020) - Quantitative geography III: Future challenges and challenging futures. [5]

Videos:

Spatial Data Science overview by Luc Anselin (2016):

What is spatial data science? (by CARTO):

What is special about spatial?¶

The question above is a classical discussion topic among spatial scientist and geographers, especially when we are discussing with someone who comes outside of our domain (i.e. great majority of the people). For us, knowing why geography matters is a rather obvious thing (as Waldo Tobler famously put it around 50 years ago), but it is also good to remind us in a bit broader terms, what is it that make this field of ours special. The following presentation gives you a brief introduction to the topic:

Analytical workflow¶

Before diving into the world of spatial analytics, let’s start by taking a look at the typical workflow that applies to spatial data science (as well as to any kind of science, really). Figure 1 represents an overview of the typical workflow for spatial analysis process (see more details from the following sections). During the course, these steps will become extremely familiar to you, as we are going to repeat the same processing steps on each week.

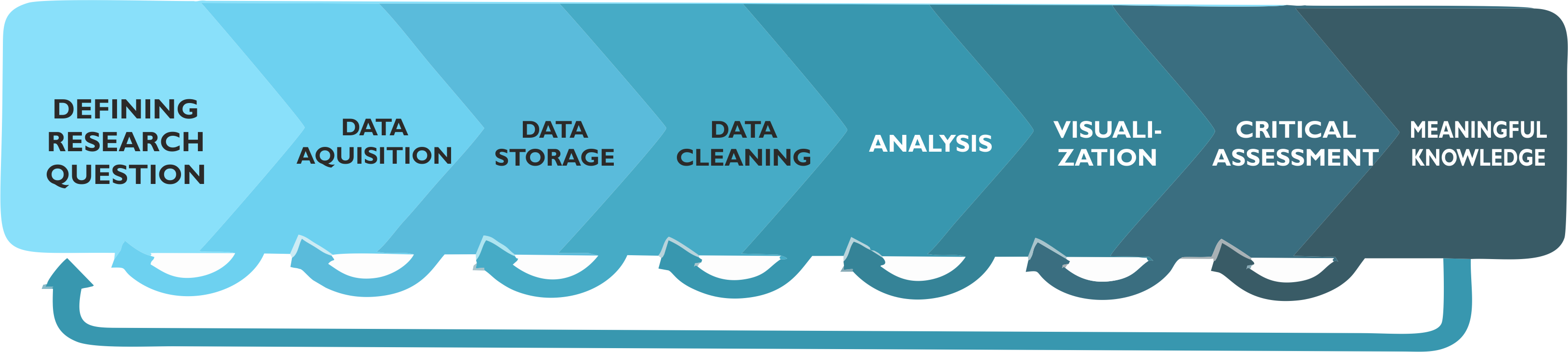

Figure 1. Typical spatial analysis workflow consist of various steps that start from defining the research question and (ideally) end with meaningful information about the topic that was analyzed. (adopted from [4])¶

Another useful and a bit more generic analytical framework is to think the methodological work as a sequence of 5 steps that is called as PPDAC consisting of Problem, Plan, Data, Analysis, Conclusions [1]:

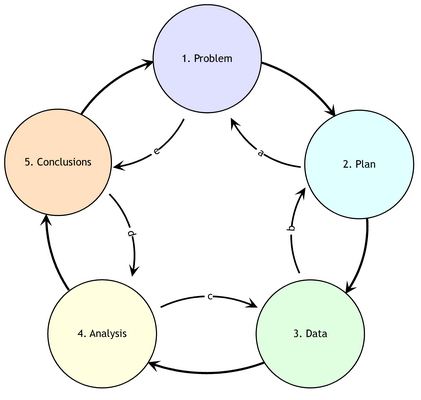

Figure 2. A PPDAC approach as an iterative process: Although clockwise sequence (1→5) applies as the principal flow, each stage often feeds back to the previous stage. (Source: de Smith et al. (2020) )¶

Step 1 - Defining the question/objectives¶

All analytical work (and doing science in general) starts by defining the research question and/or specifying the objectives for the work. Typically this step starts by getting an idea or having a problem that requires solving. You most probably have at least once gotten a “light bulb” 💡 moment, or been truly wondering some aspect of life or technology that you don’t yet understand. With the initial idea, typically follows a rigorous search for information and discussing with others about the idea/problem. In some cases, it turns out that no-one has yet answered to your question, or developed a technical solution for the problem. If this is the case, then you start by planning how to proceed with the problem at hand.
